2k Dispensers
30 Series | 100 Series
For dual-component polyurethane adhesives
Precise dosing of ISO and POL
Precise and homogeneous application
Excellent preservation
No direct contact

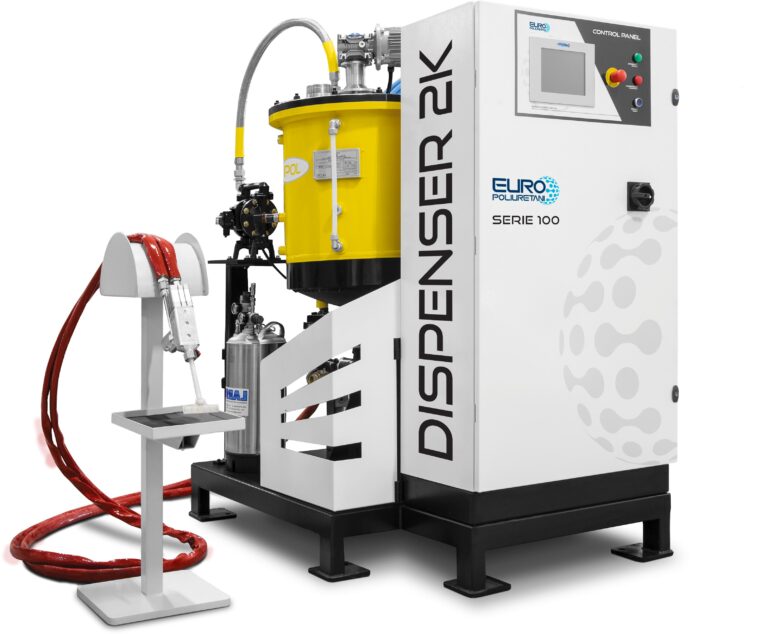

The DISPENSER 2K is a dosing and mixing system for two-component polyurethane adhesives.
A low-pressure machine that is versatile and easy to use.
It ensures perfect mixing and precise dosing, keeping the adhesive at the correct temperature and stored in the drum to preserve its effectiveness.
The essential elements to ensure excellent industrial gluing are the chemical reaction of the components and even product application, which can only be guaranteed by a polyurethane glue dispenser.
The Process
Driven by an electric motor through a gearbox and elastic couplings, the pump ensures precise dosing, and the static mixer provides optimal mixing.
The components are transported through low-pressure heated hoses to the dosing/mixing head, ensuring product uniformity.

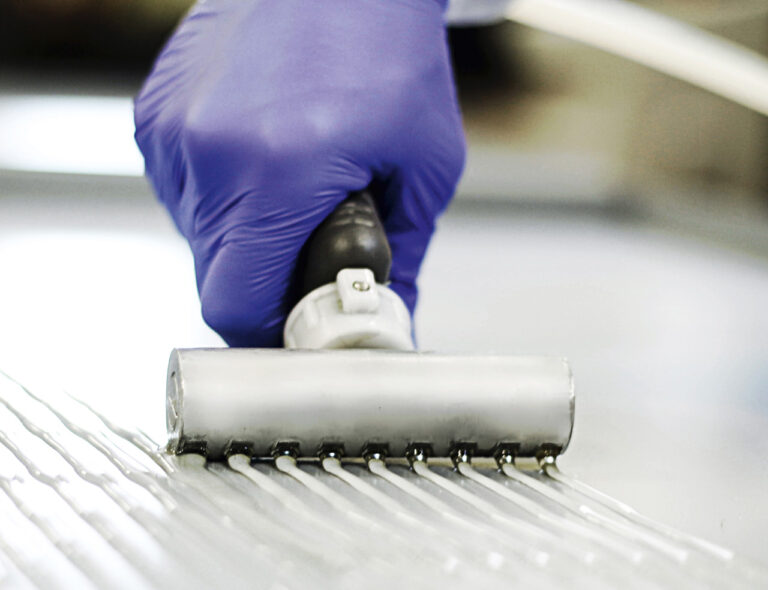

The system allows precise dispensing of the adhesive onto the product, improving application quality and process efficiency.
Automated Systems

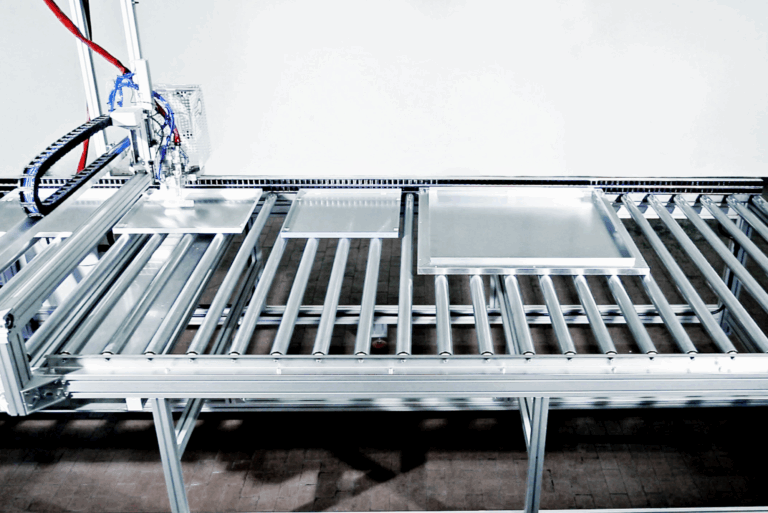

The 1K dispenser with automation
The ideal solution for high volumes of adhesive used in production.
We design and build custom automated systems, optimizing and enhancing your production process in terms of efficiency and performance.
Technical aspects
The 2K dispenser is suitable for glue with and without fillers, and can be combined with an automated system.
Tank
Available in 30 kg or 100 kg.
Pump
Gear pump driven by an electric motor.
Flow rate
Controlled via PLC.
Temperature
Control and setting via temperature controllers.
Modular Technology
Designed to adapt to your production needs
Precise volumetric dosing with electric pumps
Interchangeable static mixer for zero machine downtime
Smart control with intuitive touch screen panel and 10 customizable programs
Integrated washing system for proper cleaning
Magnetic couplings to prevent product leakage and pump blockages
Intelligent level sensors for automatic loading management
Compatible with abrasive adhesives thanks to special treatments
Constant monitoring of the dispensed quantity via volumetric counters
A unique design in every respect
A unique design that conveys ease of use, reflecting the attention to detail and dedication we put into our work.
Why automate your system?
If the glue is used repeatedly, it ensures more efficient production, thereby reducing manual work. We design and manufacture the best automated system for faultless gluing precision.
